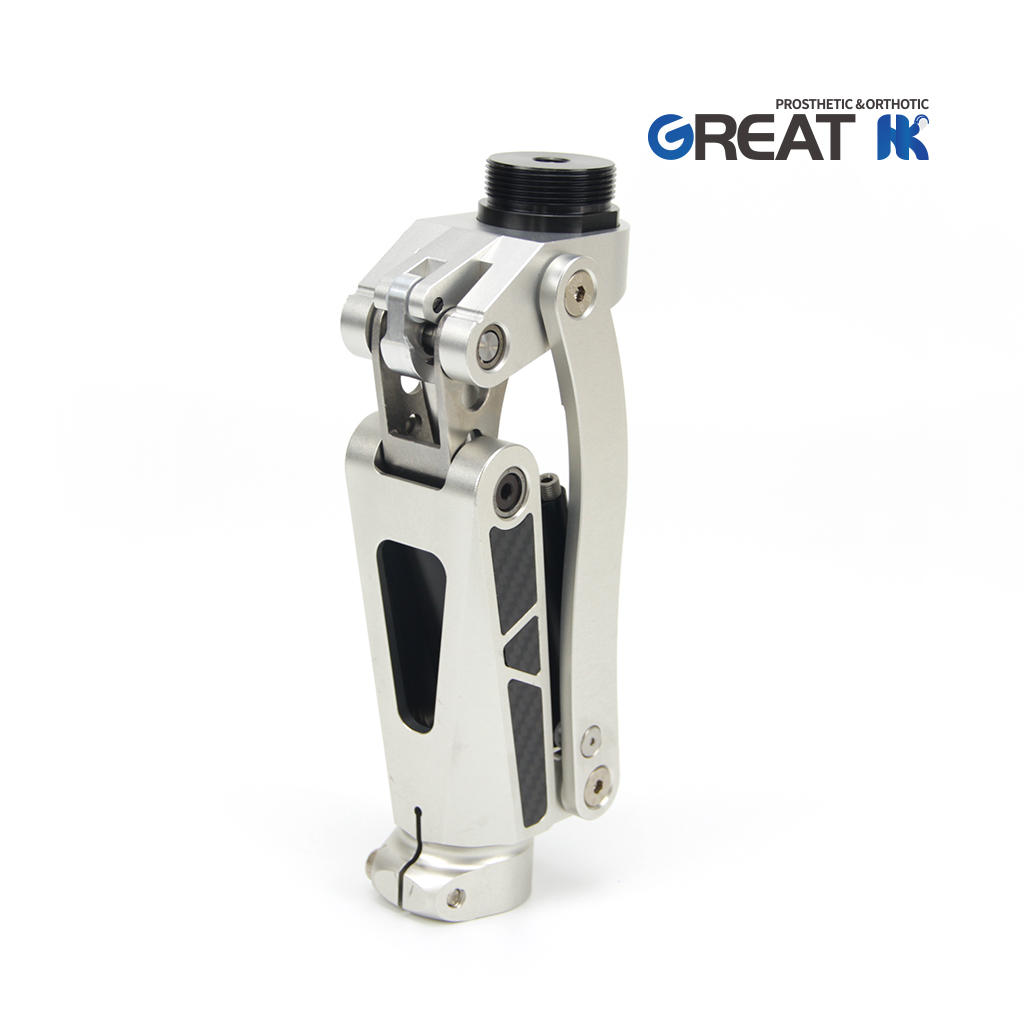

Prosthetic Geometric Lock Pneumatic Knee Joint with M36 Threaded connector

기본 정보
원래 장소: 중국
브랜드 이름: HK PROSTHETIC&ORTHOTIC
인증: CE And ISO13485
모델 번호: K15AL-TH
최소 주문 수량: 5개
가격: 협상 가능
포장 세부 사항: 통과 모양이 형성된 EPE
배달 시간: 7 작업 일수 이내에
지불 조건: T/T, D/P, L/C, D/A, Western Union
공급 능력: 매년마다 5000 PC
재료: 알루미늄 7075 무게: 894g
활동 수준: K1-K2 가까운 쪽 연결: M36 스레드 커넥터
중량 제한: 100kg / 220파운드 최대 무릎 굴곡 각도: 150'
강조하다:

Prosthetic knee joint with M36 connector

,

Geometric lock pneumatic knee joint

,

Prosthetic knee joint with threaded connector

Prosthetic Geometric Lock Pneumatic Knee Joint with M36 Threaded Connector
The Model K15AL Prosthetic Geometric Lock Pneumatic Knee Joint is a mechanical knee component designed for transfemoral (above-knee) prosthetic systems. This advanced knee joint integrates a polycentric geometric locking mechanism with a pneumatic swing control system to provide stability during stance phase and smooth motion during swing phase.
This design significantly improves user safety, gait stability, and walking efficiency, enabling amputees to achieve a more natural walking pattern. The knee joint is specifically engineered for moderate-activity prosthetic users (K1-K2 mobility levels) in daily walking and rehabilitation applications.
Key Components and Functionality
Geometric Lock Mechanism
The knee utilizes a polycentric linkage system (four-bar or five-bar mechanism) that creates a geometric locking effect when the prosthesis is loaded. During the stance phase, the linkage structure stabilizes the knee and prevents unintended flexion, enhancing safety and balance.
Pneumatic Control System
The internal pneumatic cylinder provides air-based resistance to control knee flexion and extension during the swing phase. This system regulates the swing speed and enables smoother, more natural leg movement.
Polycentric Linkage System
The multi-axis linkage design simulates the biomechanics of the human knee joint. It shortens the effective limb length during swing phase, improving toe clearance and reducing the risk of tripping.
Stance Phase Operation
When the prosthetic foot contacts the ground and bears weight, the geometric linkage system automatically creates a locking effect, stabilizing the knee joint and preventing accidental buckling.
Swing Phase Operation
When the prosthetic leg leaves the ground, the locking effect is released. The pneumatic control system regulates the knee's flexion and extension speed to provide smooth and controlled swing motion.
Product  Number Material Specification Part  Weight Max. Load
K15AL—TH Aluminum Thread M36 894g 100Kg / 220Lbs

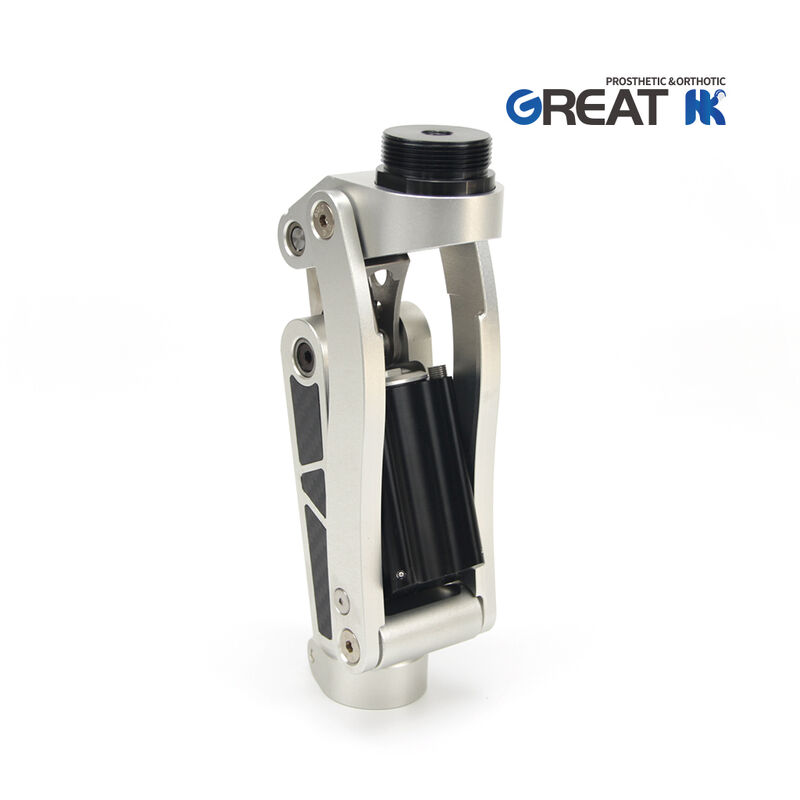

Prosthetic Geometric Lock Pneumatic Knee Joint with M36 Threaded connector 0

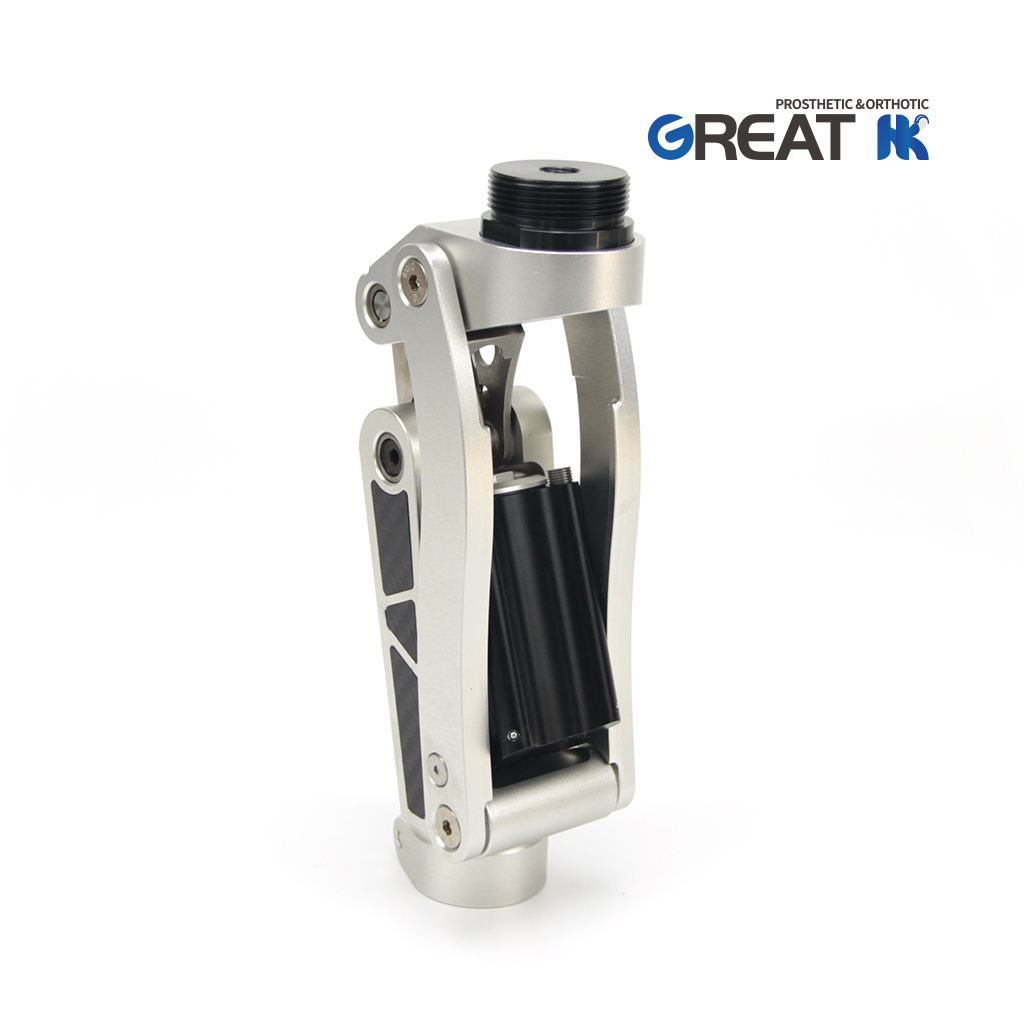

Prosthetic Geometric Lock Pneumatic Knee Joint with M36 Threaded connector 1

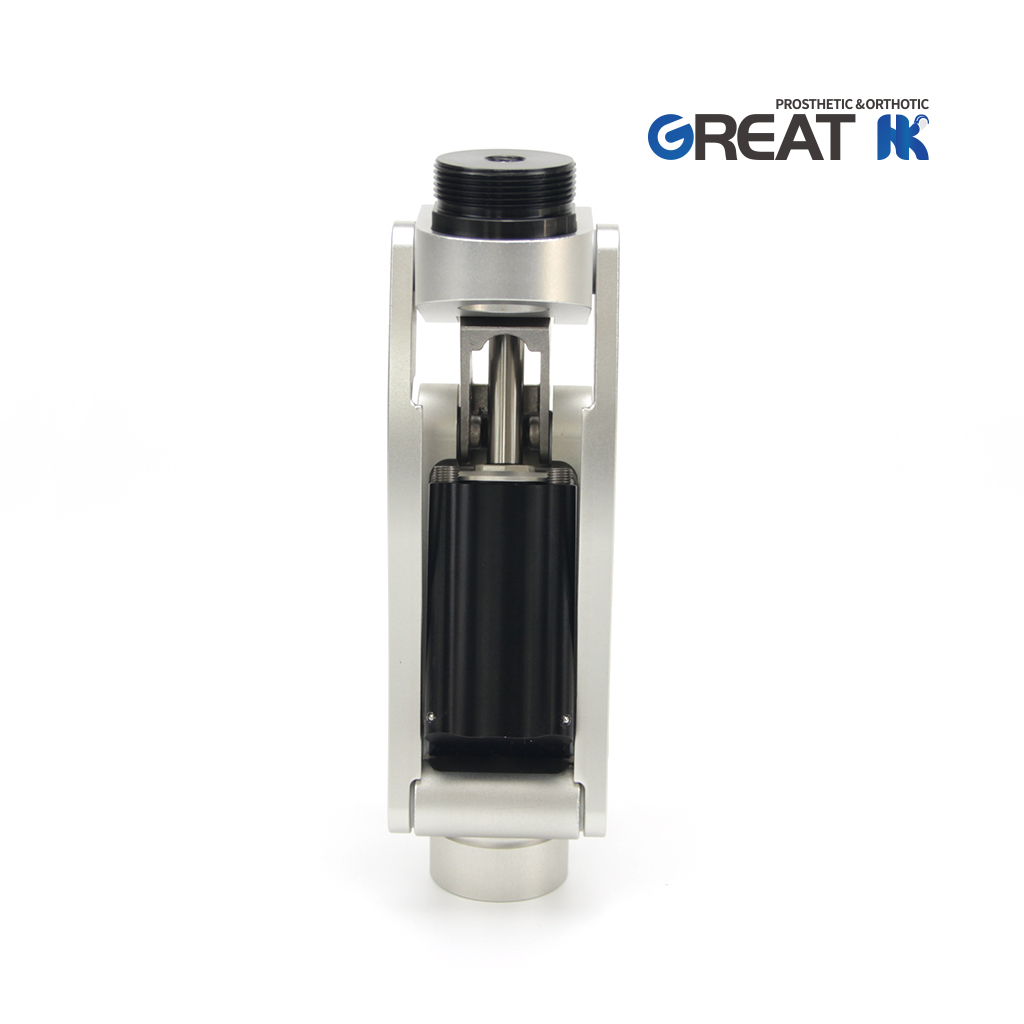

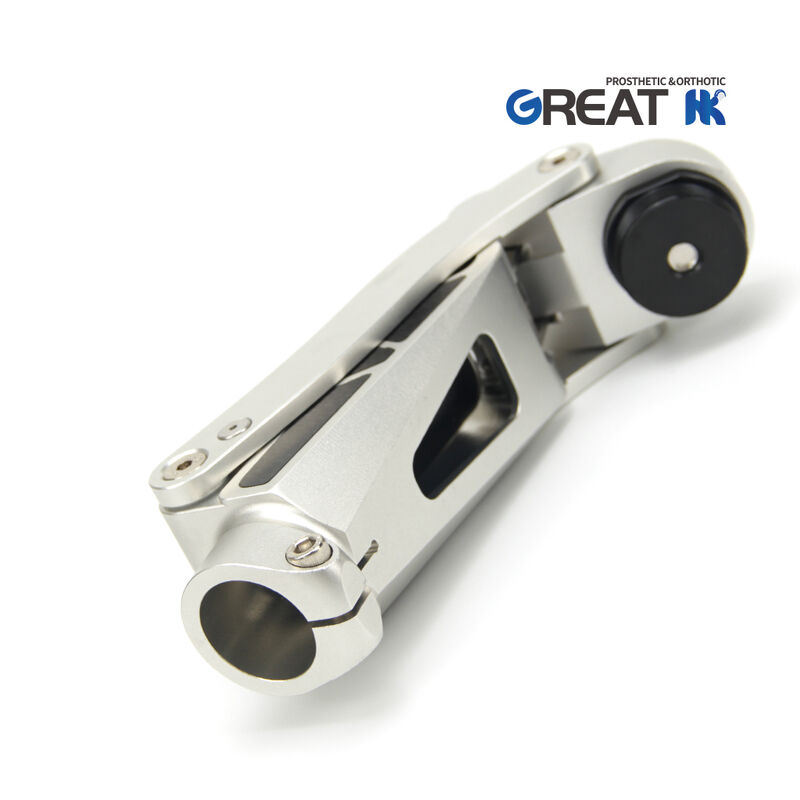

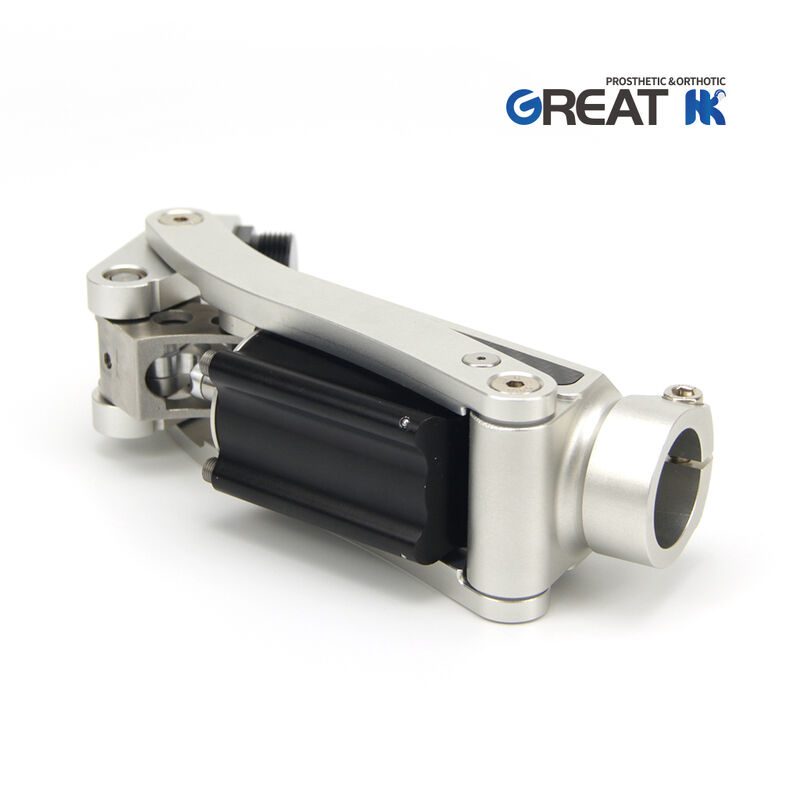

Prosthetic Geometric Lock Pneumatic Knee Joint with M36 Threaded connector 2Prosthetic Geometric Lock Pneumatic Knee Joint with M36 Threaded connector 3Prosthetic Geometric Lock Pneumatic Knee Joint with M36 Threaded connector 4

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer, providing OEM & ODM service.

Q: How many years since your company start this business?

A: We began manufacturing prosthetics and orthotics parts since the year 2002.

Q: Did your factory Register for export and import?

A: Yes. We applied full range of documents for exportation and importation.

Q: Did your factory and products approved by any testing or certification?

A: yes. We applied CE and ISO13485 medical certification.

Q: May I apply to be one distributor or sole agent in our country to sell your products?

A: yes. This issue can be have a discussion.

Q: May I apply some free samples for testing before purchasing the full range of production?

A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.

Q: How to deal for sample order and regular order?

A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.

Q: How faster u can ship out the order?

A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.

Q: Which way are acceptable for the payment?

A: TT/ Paypal / Western Union

Q: Can you provide us the best price?

A: Yes, each Item have differential pricing according to quantity.

Q:What’s your Quality warranty?

A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.

Q: Can we visit your factory?

A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.

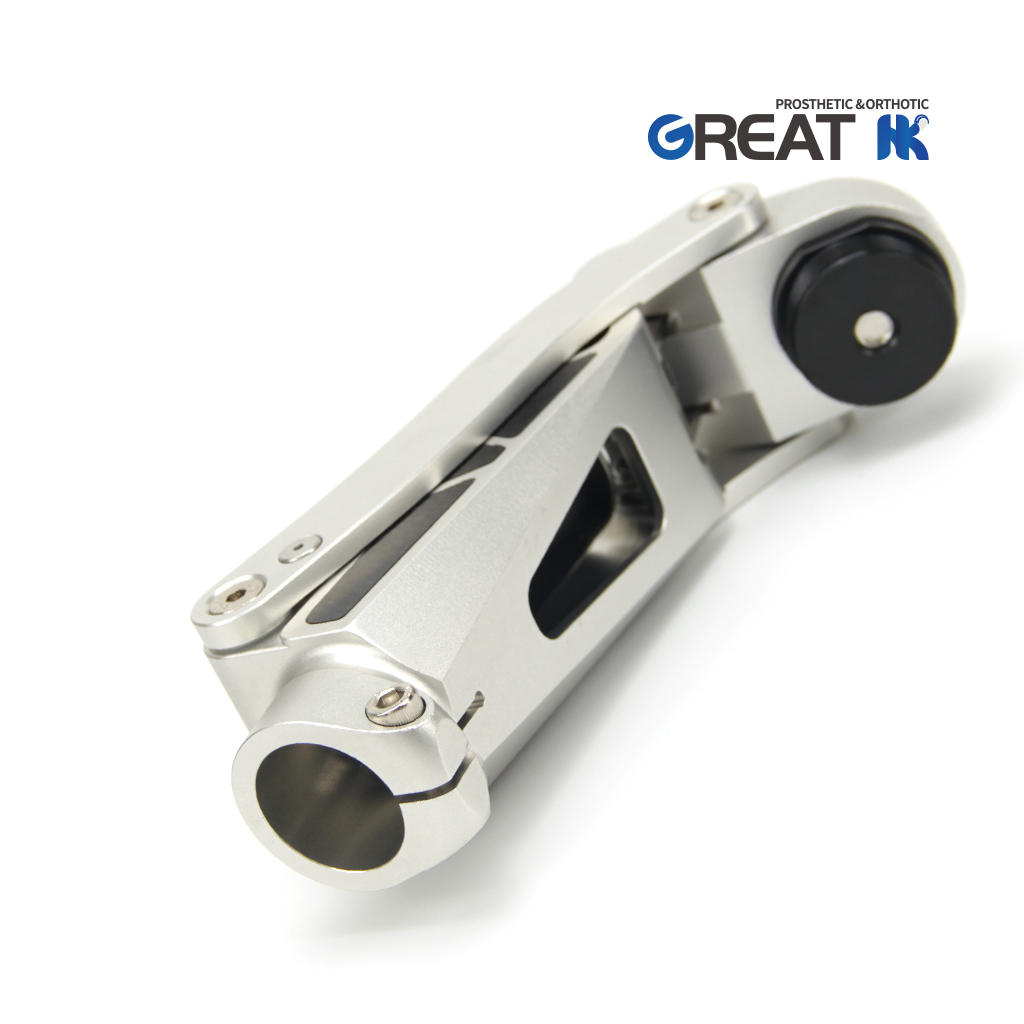

Prosthetic Geometric Lock Pneumatic Knee Joint with M36 Threaded connector 5
